This version of the L-band antenna is designed to be used for direct satellite reception.

Standard polarization is RHCP, you can also select an LHCP version.

Dimensions:

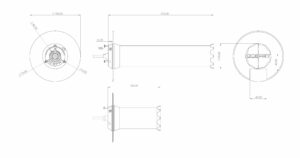

The RHCP versions (7 / 10 turns) need to be mounted with 6 M4 bolts as per drawing. Hole pattern circle diameter is 73mm.

Example VSWR profile for a 10 turn RHCP helix tuned to 1575MHz:

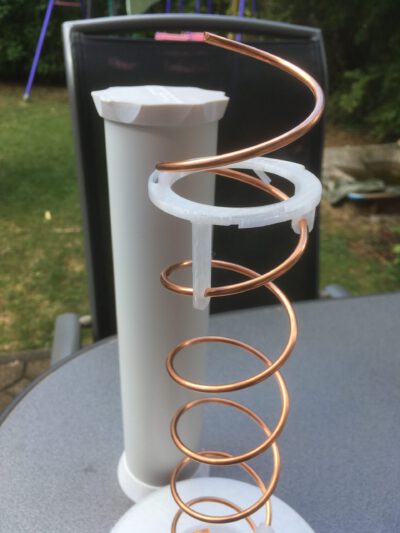

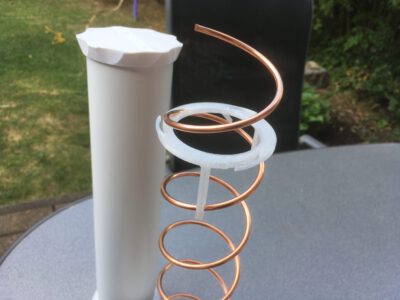

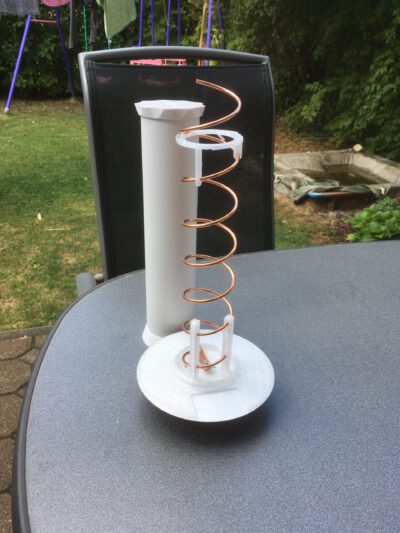

L-Band antenna ASSEMBLY INSTRUCTIONS
