Feed and LNA assembly instructions

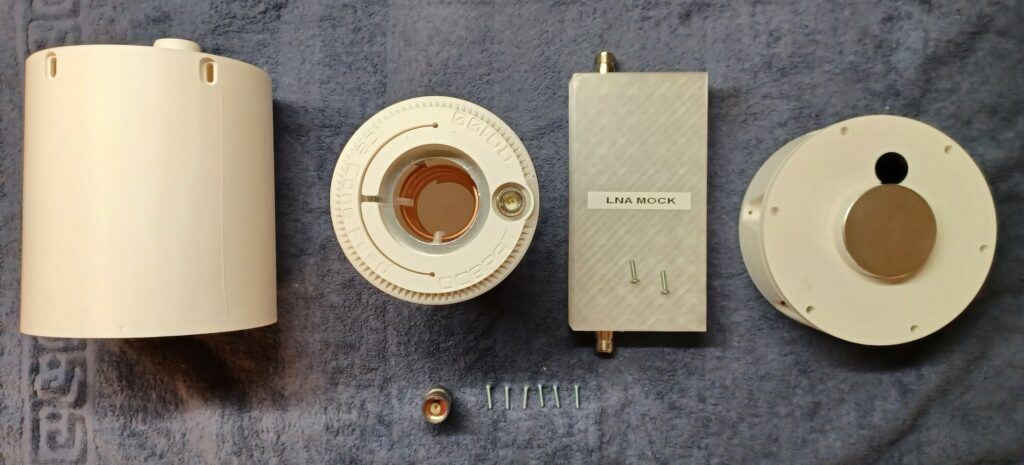

Supplied parts

  • LNA Radome
  • S-Band LHCP feed
  • N-type male/male adapter
  • 6x M3 screws (M3x16)
  • Primary dish adapter

Not included: LNA and LNA screws. LNA-mock is only for mechanical validation

Assembly

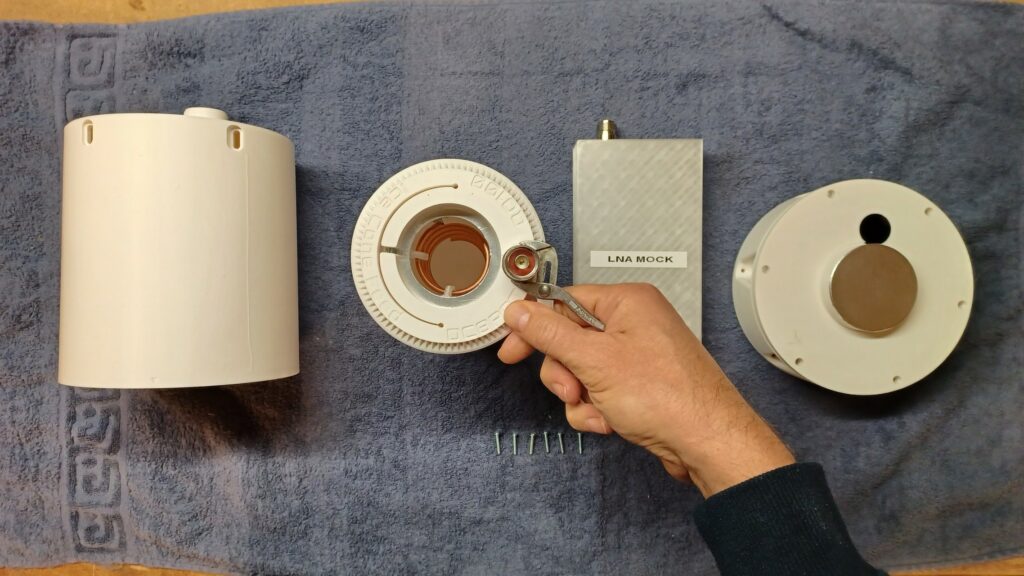

Torque down N-Type adapter on feed

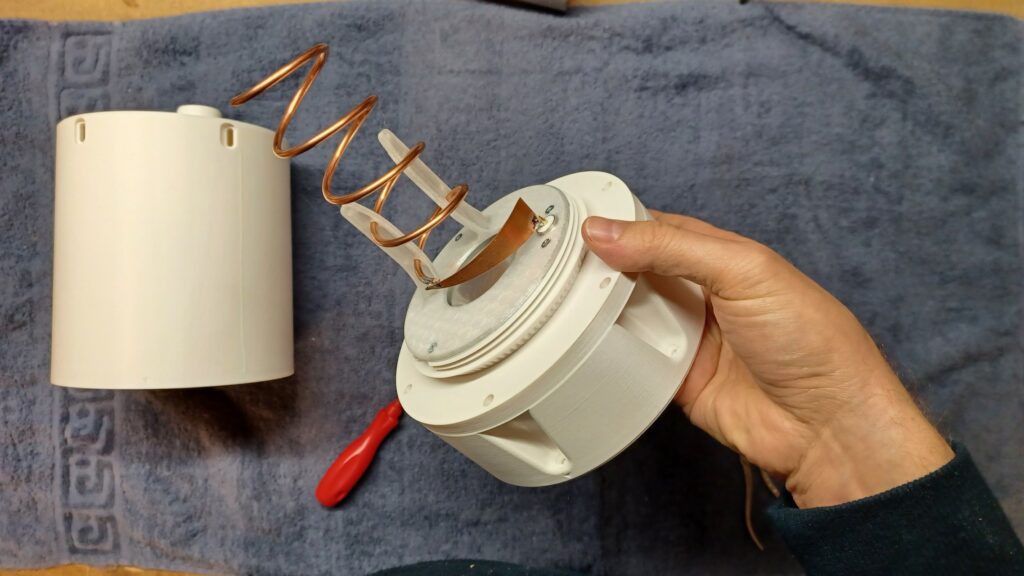

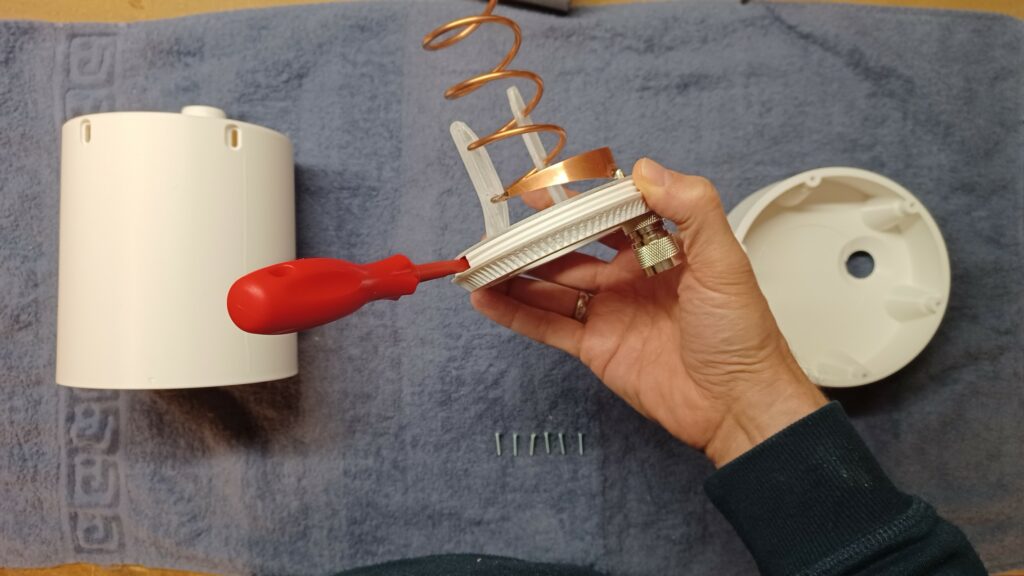

Remove feed radome and losen clamp screw (phillips head)
Push feed onto adapter

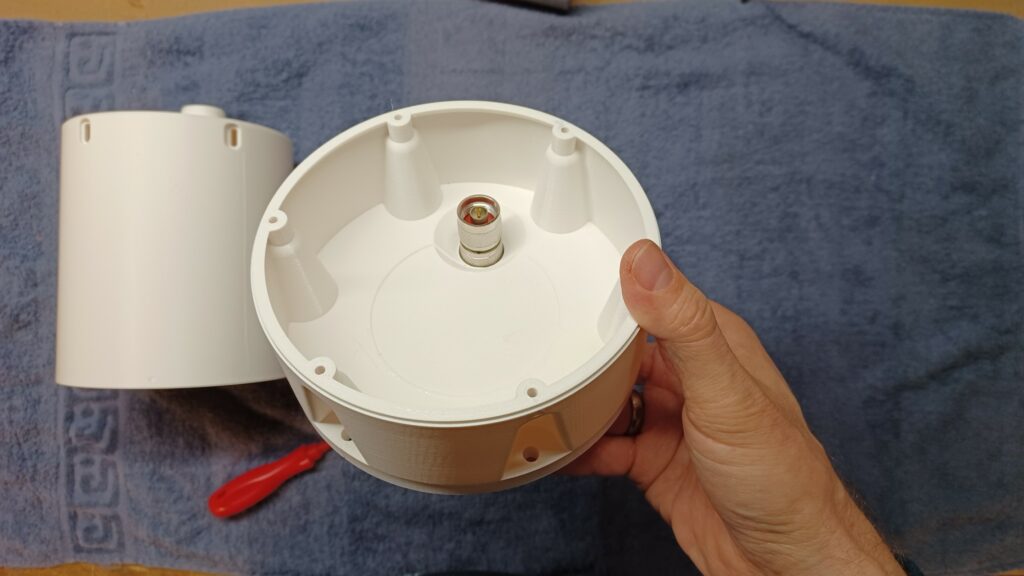

Center N-Type adapter with through hole.

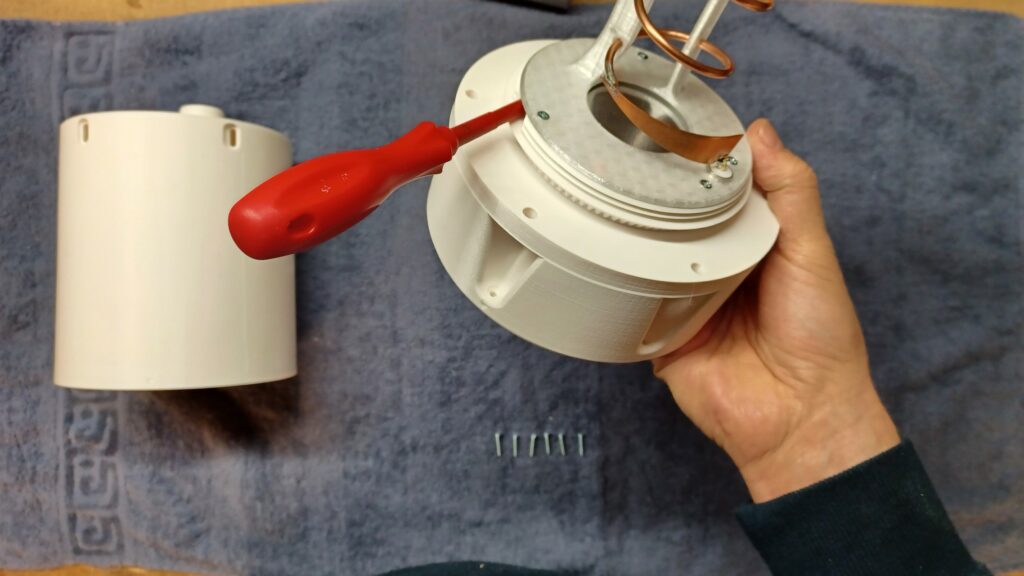

Tighten clamp screw (moderate torque)
Screw on feed radome

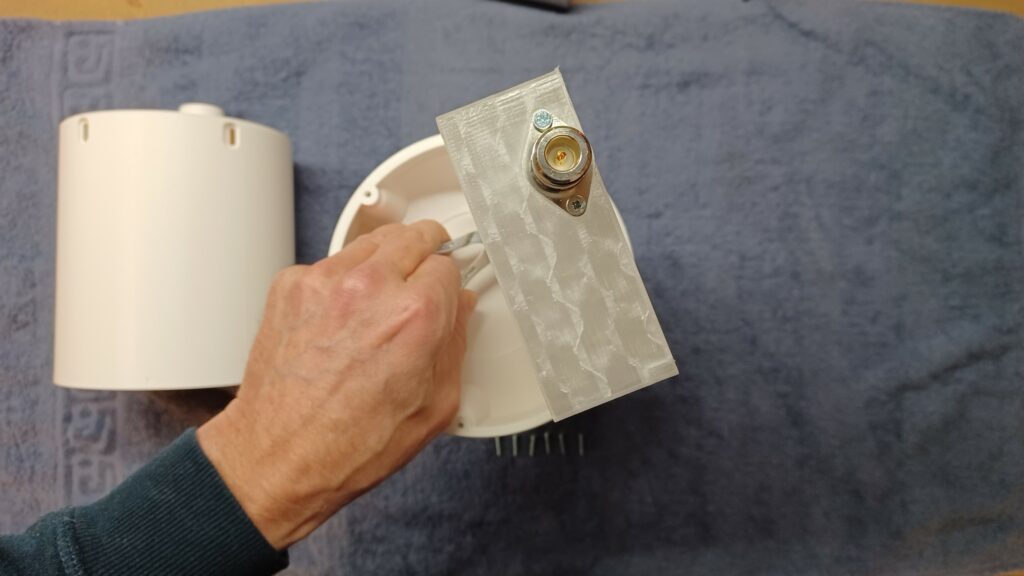

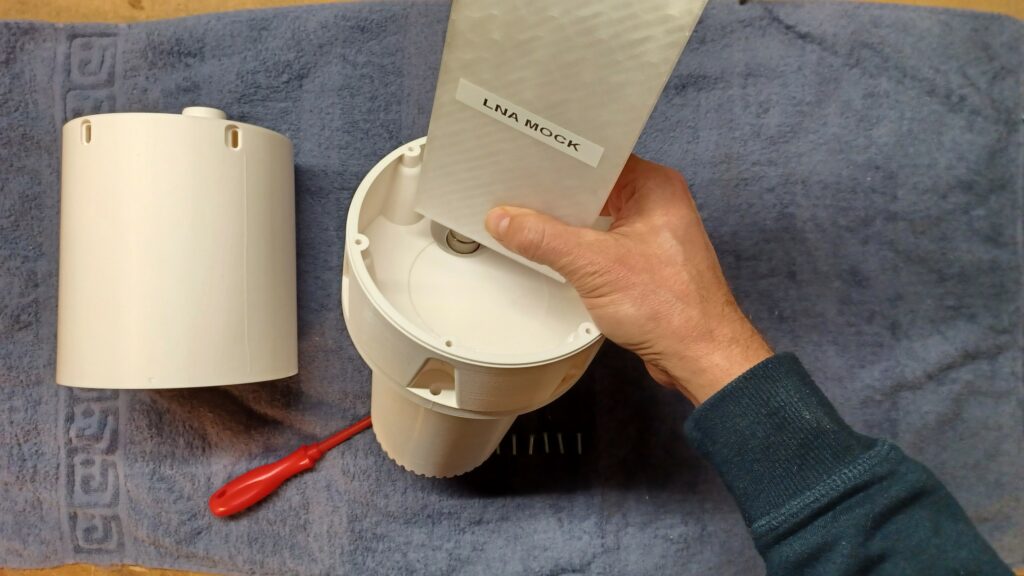

Position LNA on N-Type adapter
Tighten N-Type adapter

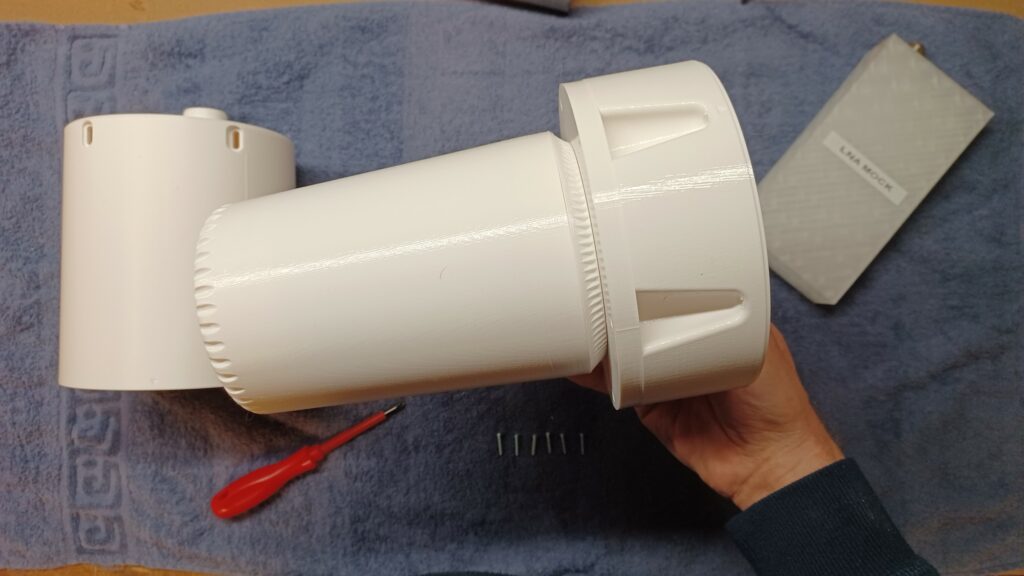

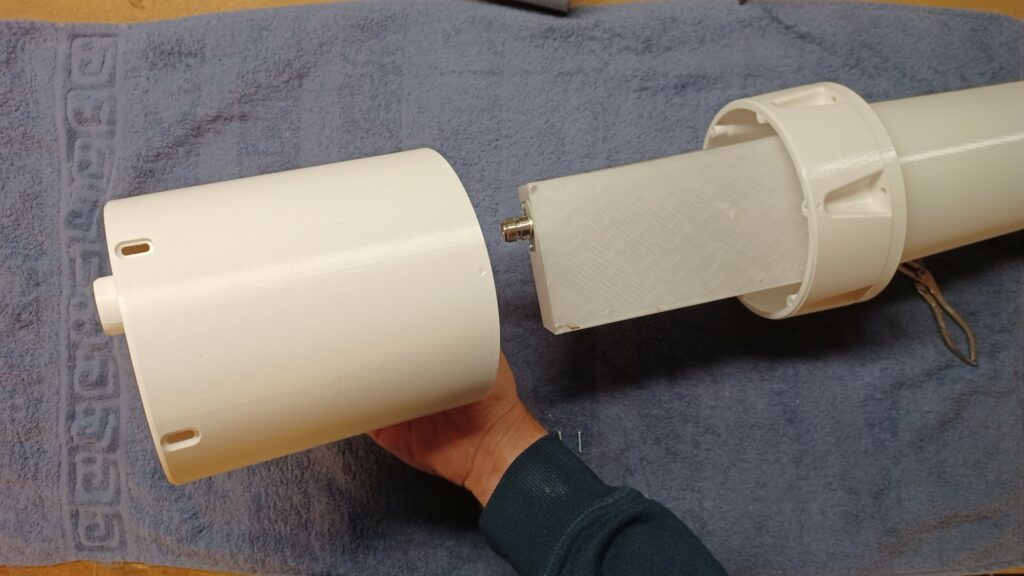

Position LNA radome

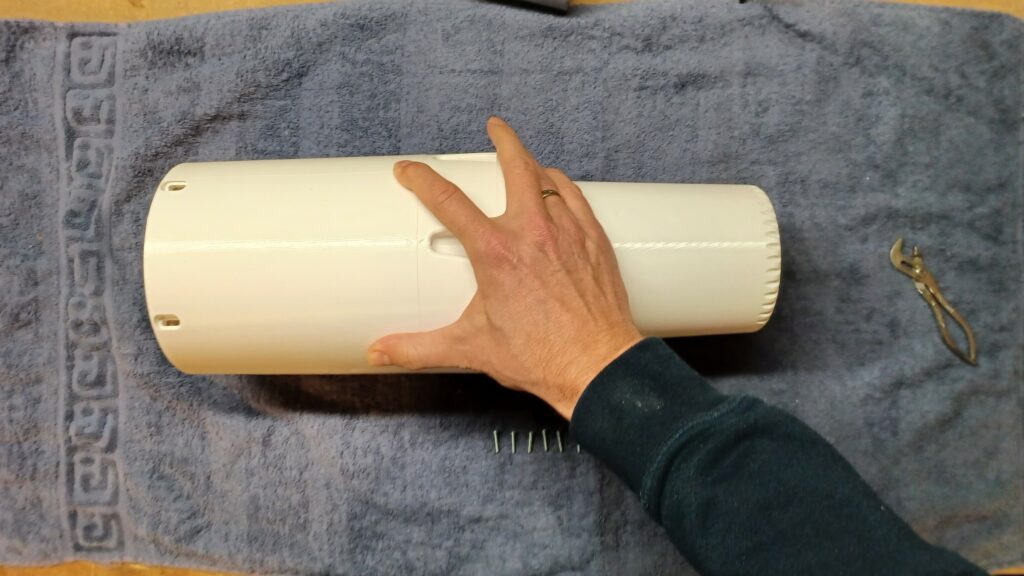

Align LNA radome such that triangle markers match

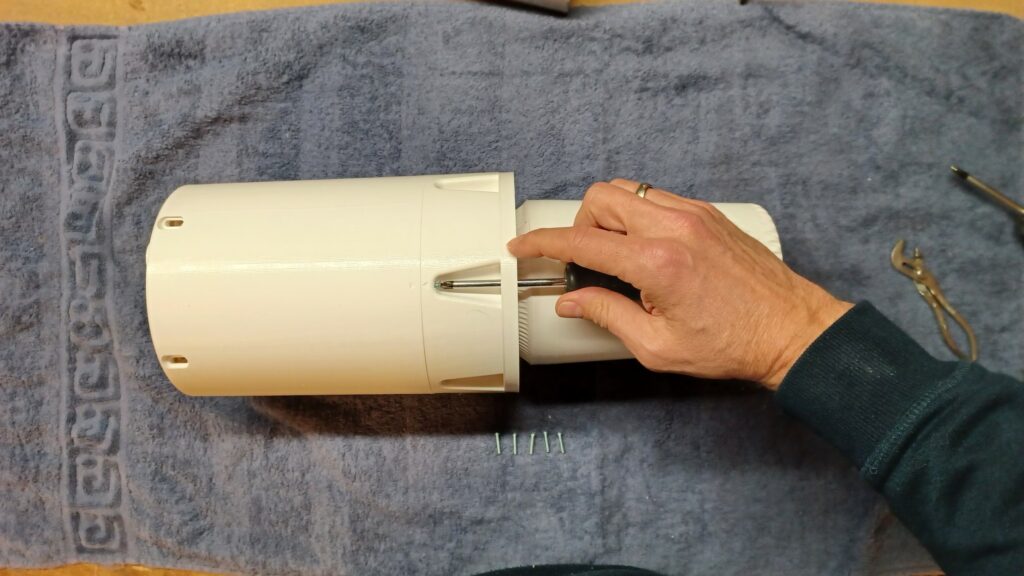

Screw in 6x M3 screws (do not overtorque as they screw into plastic radome)
Align LNA mounting holes

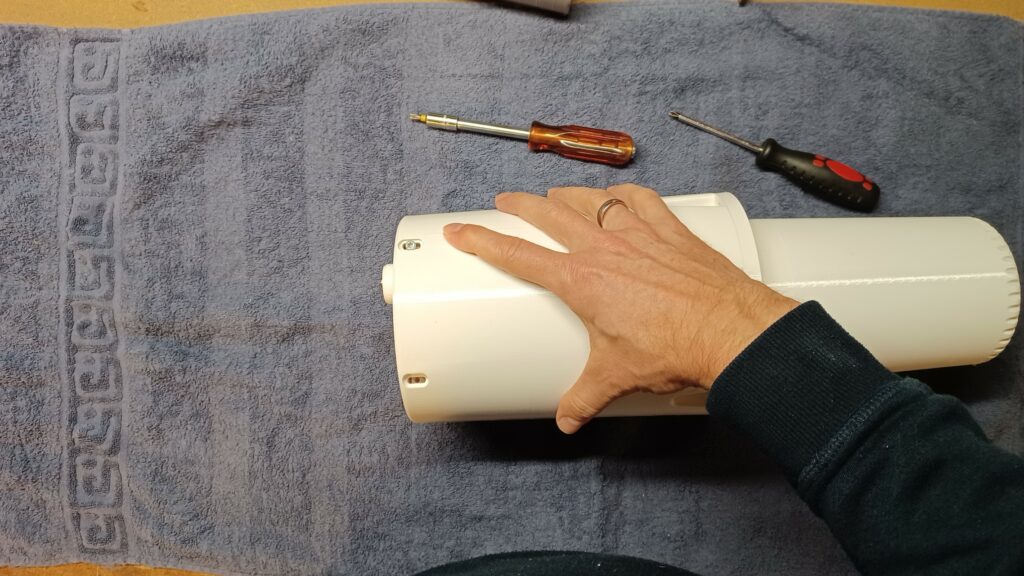

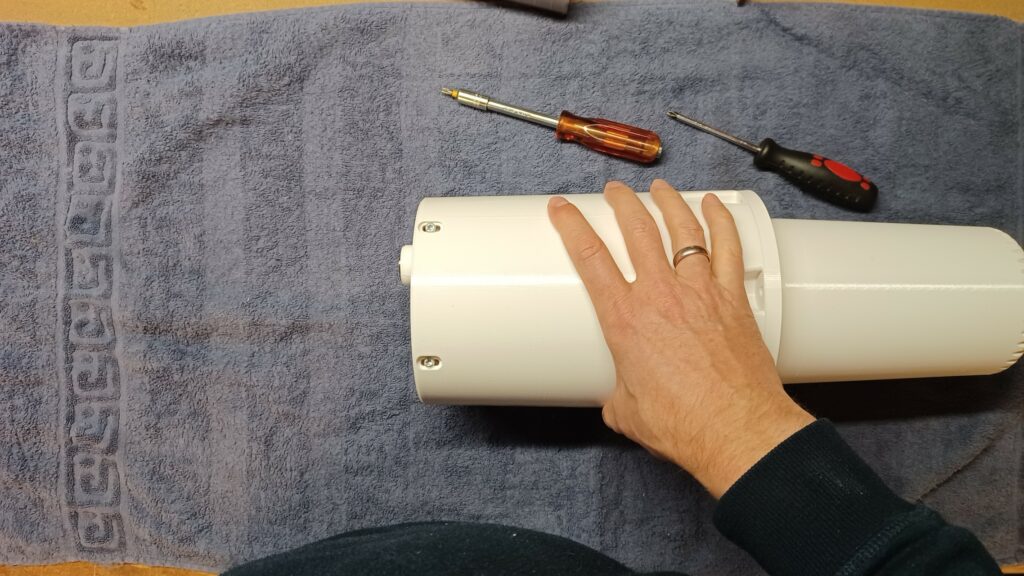

Screw in first M4 screw (not supplied)

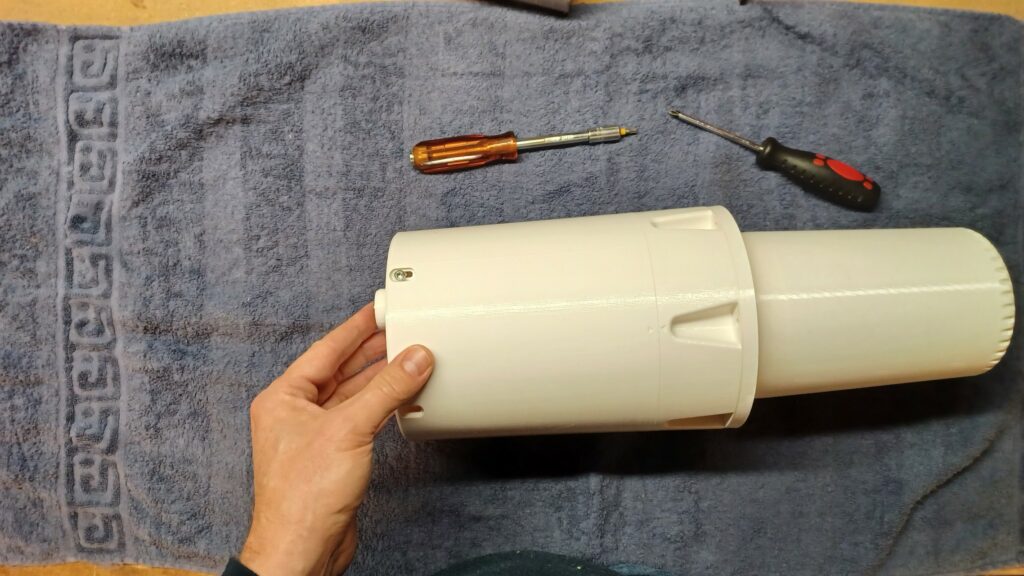

Second M4

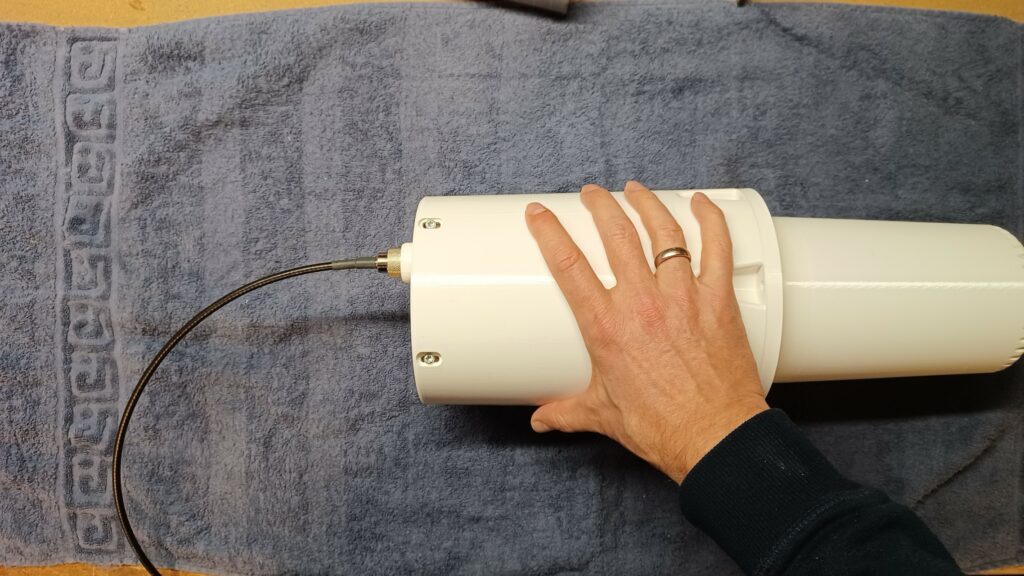

Attach N-Type cable. Use self sealing tape to seal cable. Apply silicone to seal M4 screw holes
